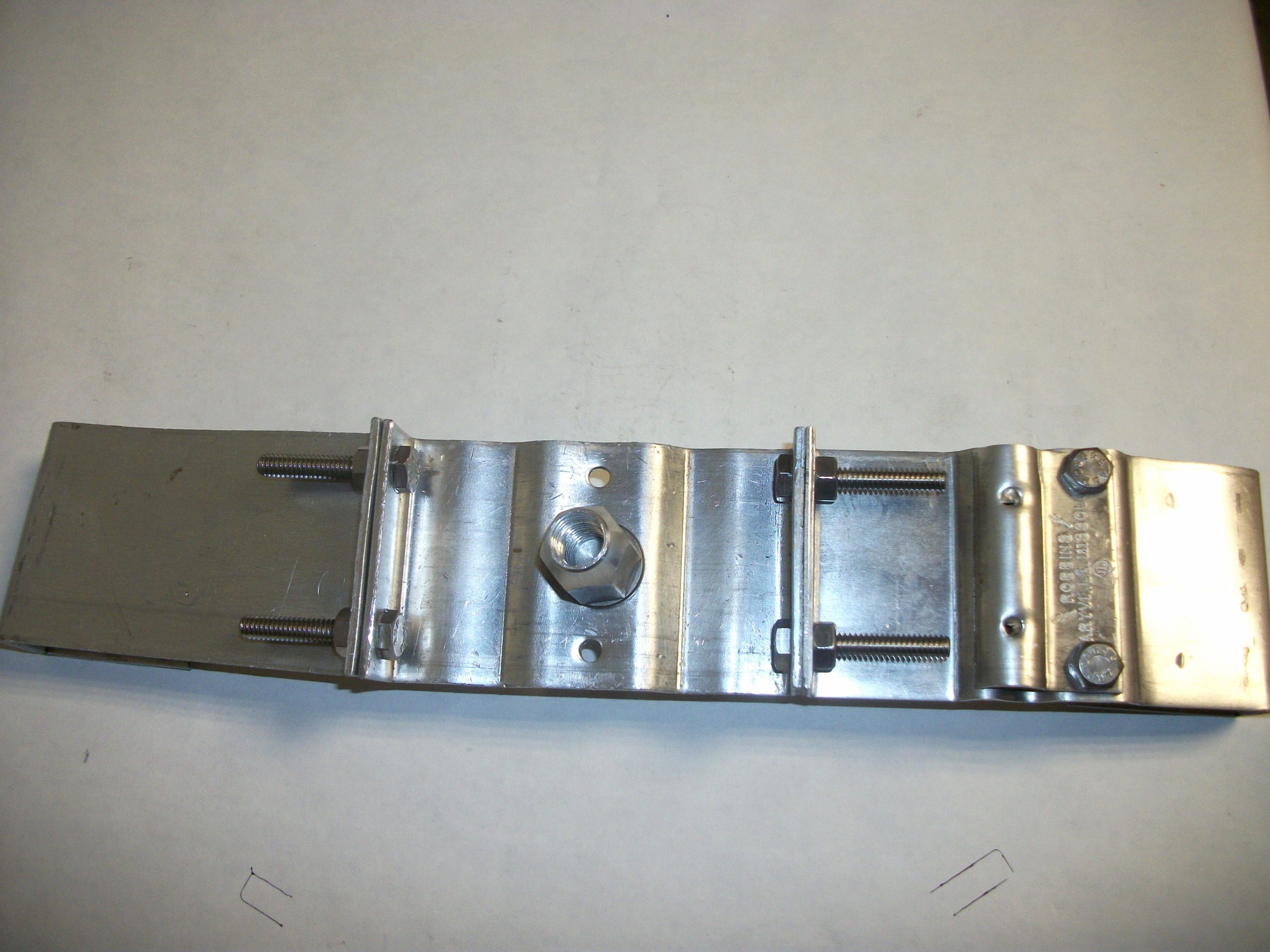

A48A Tile Roof Point Base – Aluminum

A48A Tile Roof Point Base – Aluminum

$13.55

Copper or aluminum strap point base for “no hole” installation on Spanish tile ridge cap or glazed tile wall cap.

Download PDF Specifications Sheet
SKU: A48A Categories: , ,

Description

Copper or aluminum strap point base for “no hole” installation on Spanish tile ridge cap or glazed tile wall cap — 2-1/2” wide with two 1” bolts to draw tight to tile — cable contact 2-1/2” for main sized cables through No. 605. Overall dimensions – 2-1/2” x 11-1/2”.
Standard length for 12” tile — longer span length available upon request.
Specify diameter of point — 3/8” , 1/2”, 5/8”.

Additional information

Weight 0.43125 lbs
